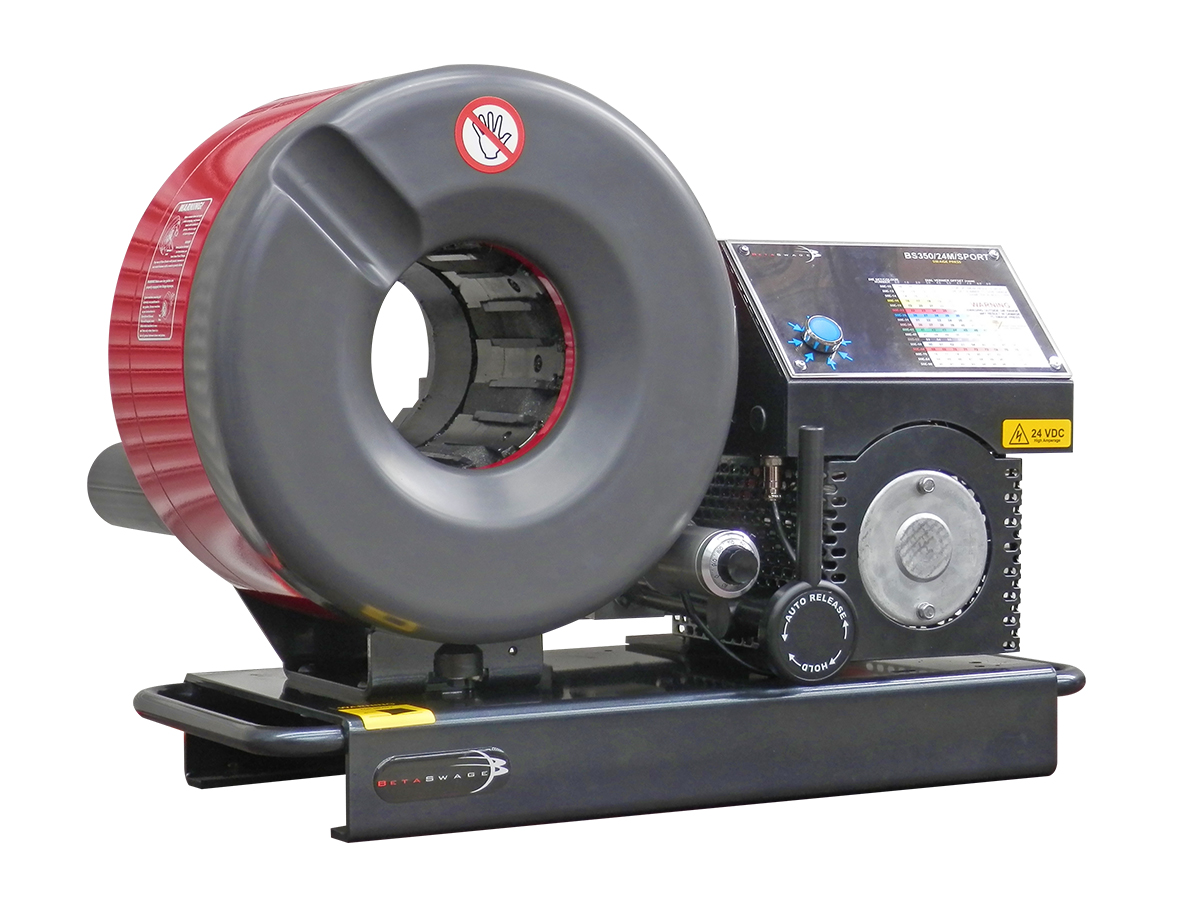

    Picture of BS350/24M/SPORT - 2" Picture of BS350/24M/SPORT - 2"

    BS350/24M/SPORT - 2"

    SKU: BS350/24M/SPORT
    • 2" 6 Wire Hydraulic hose capability
    • Shoe cluster auto indexing - auto lubrication
    • Dies without pins
    • Change dies without a tool
    • 24 VDC supply
    • Standard swaging range 16 to 78mm diam.
    • Extended swaging range 6.5 to 92mm diam.
    $0.00 inc GST

    A precision 2" nom. swage press for the production of hose assemblies of all types.  Designed specifically for mobile hose trucks with 24VDC supply and anti-spill reservoir breather.  The BS350/24M/SPORT has an indexing shoe cluster that provides auto lubrication with >97% efficiency.  Single button operation where correct installed diameter is achieved, stopped, then automatic rapid retract to fully open position.  Able to crimp all hydraulic hoses to 2" diameter/isobaric 6000.

    A precision 2" nom. swage press for the production of hose assemblies of all types.  Designed specifically for mobile hose trucks with 24VDC supply and anti-spill reservoir breather.  The BS350/24M/SPORT has an indexing shoe cluster that provides auto lubrication with >97% efficiency.  Single button operation where correct installed diameter is achieved, stopped, then automatic rapid retract to fully open position.  Able to crimp all hydraulic hoses to 2" diameter/isobaric 6000.

    Products specifications
    Swaging Range (mm) with Standard Die Set16 to 78
    Extended Swaging Range (mm) with Optional Die(s)6.5 to 92
    Max. Die Set Opening (mm + Die Set Size)50
    Radial Swaging Force (kN)4100
    Cycle Speed (Full Stroke-Complete Cycle sec.)18

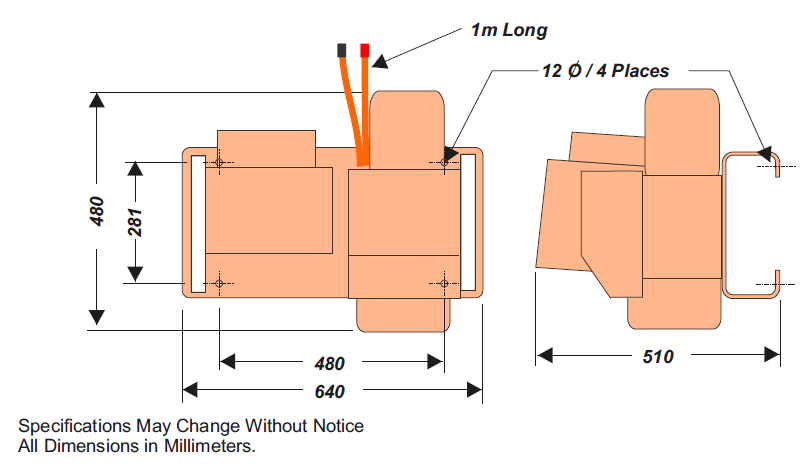

    Dimensions (mm)600x560x570 mm
    Weight (kg without Dies & Oil)220
    Supply (Volts)24 VDC
    Supply (Amps)150
    Power (kW)1.5
    Rated Pressure (bar)300
    Pump Flow Rate (L/min)12.2
    Reservoir Capacity (Litres)10
    Filtration (um)100
    Hose Diameter Capability3"
    Hose Wire Capability6, 4, 2, 1

    Standard Die Set

    Product Number

    Range (mm)

    BS50ESDS

    11 die sets supplied as a package to allow infinite swaging between 16 to 78mm finished swage size.

    50E-16

    16 – 20

    50E-19

    19 – 24

    50E-22

    22 – 27

    50E-26

    26 – 31

    50E-31

    31 – 37

    50E-36

    36 – 42

    50E-41

    41 – 48

    50E-47

    47 – 54

    50E-53

    53 – 60

    50E-60

    60 – 68

    50E-68

    68 – 78

    Product Files
    Datasheets
    Products specifications
    Swaging Range (mm) with Standard Die Set16 to 78
    Extended Swaging Range (mm) with Optional Die(s)6.5 to 92
    Max. Die Set Opening (mm + Die Set Size)50
    Radial Swaging Force (kN)4100
    Cycle Speed (Full Stroke-Complete Cycle sec.)18
    Dimensions (mm)600x560x570 mm
    Weight (kg without Dies & Oil)220
    Supply (Volts)24 VDC
    Supply (Amps)150
    Power (kW)1.5
    Rated Pressure (bar)300
    Pump Flow Rate (L/min)12.2
    Reservoir Capacity (Litres)10
    Filtration (um)100
    Hose Diameter Capability3"
    Hose Wire Capability6, 4, 2, 1
