BS132/220M/LITE - 1-1/4"

SKU: BS132/220M/LITE
  • 1-1/4" 4 wire hydraulic hose capability
  • 2" 2 wire hydraulic hose capability
  • Dies with colour coding pins
  • Large aperture
  • Automatic motor control
  • Standard swaging range 16 to 55mm diam.
  • Extended swaging range 6.5 to 68mm diam.
$0.00 inc GST

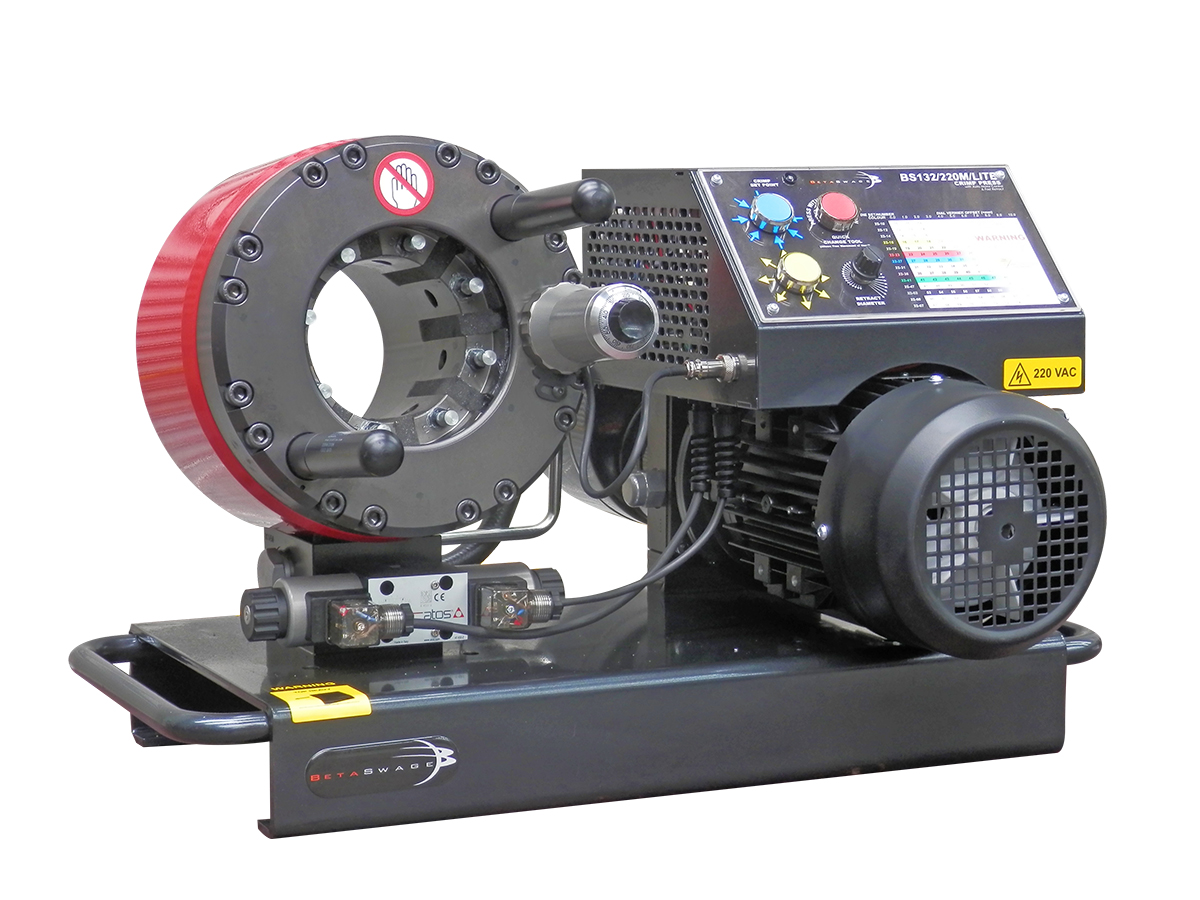

A precision 1-1/4" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The press is of a design with a large aperture enabling optional die sets to 2" hose of light construction. The die sets used are those of a popular European “pin” design.

A precision 1-1/4" nom. swage press for the production of hose assemblies of all types.  Designed specifically for portability, with versatile single phase supply.  The press is of a design with a large aperture enabling optional die sets to 2" hose of light construction. The die sets used are those of a popular European “pin” design.

Products specifications
Swaging Range (mm) with Standard Die Set16 to 55
Extended Swaging Range (mm) with Optional Die(s)6 to 68
Max. Die Set Opening (mm + Die Set Size)25
Radial Swaging Force (kN)1500
Cycle Speed (Full Stroke-Complete Cycle sec.)18

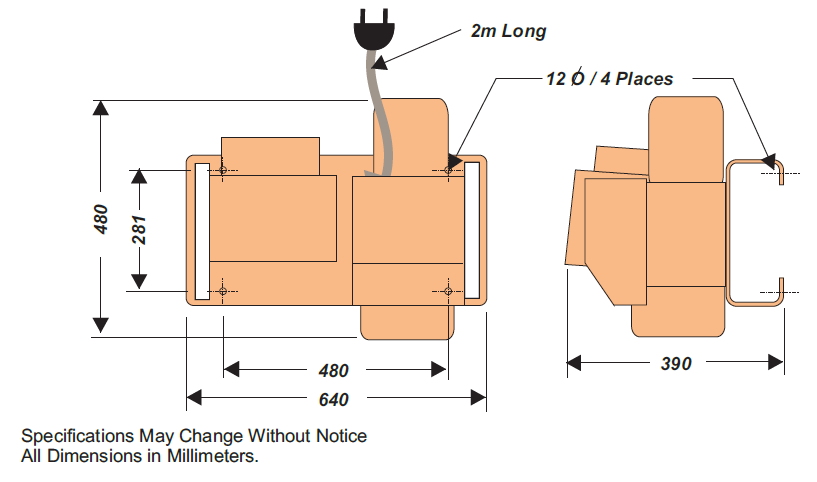

Dimensions (mm)600x420x570 mm
Weight (kg without Dies & Oil)130
Supply (Volts)110 - 220 VAC
Supply (Amps)30 - 15
Power (kW)1.8
Rated Pressure (bar)300
Pump Flow Rate (L/min)4.6
Reservoir Capacity (Litres)5
Filtration (um)100
Hose Diameter Capability2"
Hose Wire Capability4, 2, 1

Standard Die Set

Product Number

Range (mm)

BS32SDS

8 die sets supplied as a package to allow infinite swaging between 16 to 55mm finished swage size.

32-16

16 – 20

32-19

19 – 24

32-23

23 – 28

32-27

27 – 32

32-31

31 – 37

32-36

36 – 42

32-41

41 – 48

32-47

47 – 55
